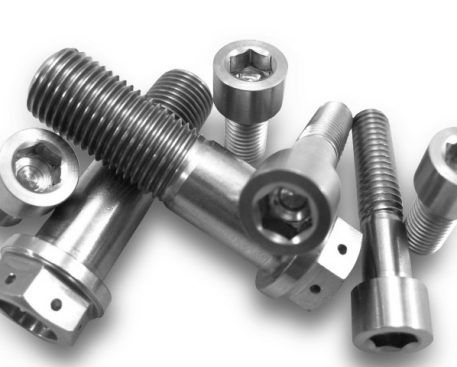

Titanium bolt and nut
Time :2020/01/10 16:17:52 Hits :24718

Titanium bolt and nut

Material: Ti Grade 2, Grade 5(Ti6Al4V), Grade 7, Ti6Al4V ELI

Standard: DIN912/933/7991/7984/6921,ISO 7380,JIS,BS etc

Size: M1~M30 X Custom length

Colour: Gold, Blue, Purple, Green, Black,Ti natual

Strength class: 8.8/10.9/12.9

Application:  Equipment accessories,airplane, ship, bicycle, motorcycle, auto,

                  medical, chemical, wheelchair, sports, anchor, weapon, etc.


Our bright spot:

1. aerospace grade material--titanium Gr5

2. The head of our bolt are Hot forged for higher strength,instead of Machined head.

3.The threads of our bolt are Rolled for greater fatigue resistnace and avoiding galling,instead of Cut threads.


Quality Guarantee:

"Quality guarantee begins with design and carries through final inspection and field testing"

--Raw material(Ti bars):

  Aircraft grade Titanium alloy 6Al4V and Ultrasonic inspection for Ti6Al4V bars

--Advanced processing method:

  Forged Head improves superior strength,Rolled Threads to produce greater fatigue resistance and rdeuce galling

--Quality inspection conducted by QC before delivery

  Sampling inspection for Chemical composition and Michanical properties like Tensile strength etc

  Dimension measurements like Thread size,Height of head,Depth of socket etc


  Related Certs for Chemical composition and Mechanical properties will be offered along with goods delivery

--Returns of defected products

  If the products fail to meet the agreed requirements when clients recieve the goods,they     will be replaced, subject to availability, or refunded at clients discretion.
