medical titanium bar and rod
Current Position : Home > medical titanium bar and rod

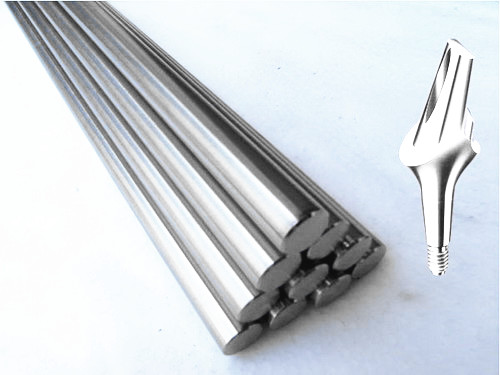

Medical titanium bar and rod
Time :2014/04/24 11:58:34 Hits :16832


ASTMF136 ,ASTM F67 medical titanium bar and rod

1.Gr1, Gr1ELI, Gr2, Gr3, Gr4, Gr5, Gr5ELI(6Al4V ELI), Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-2.5Fe

2.Size:Dia 5-100mm * Length

3.ISO9001:2008,SGS

4.Surface condition: Polishing ,brightness


 Mechanical properties

Grade

Condition

        Mechanical properties

Diameter

mm

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

A%

Gr1ELI

M







>7~90

>=200

>=140

>=30

Gr1

>=240

>170

>=24

Gr2

>=400

>=275

>=20

Gr3

>=500

>=380

>=18

Gr4

>=580

>=485

>=15

Gr5

>7~50

>=930

>=860

>=10

>50~90

>=895

>=830

>=10

Gr5ELI

>7~45

>=860

>=795

>=10

>45~65

>=825

>=760

>=8

>65~90

>=825

>=760

>=8


Our featured products

Titanium Plate for Internal Bone Fixation
Titanium Bar for Bone Screw
Titanium Bar for Bone Joint
Titanium Mesh Plates for Skull
Titanium sheet for plate heat exchangers


Our competitive advantages

*Advanced detection equipment such as: ultrasonic flaw detection,infra-red appratus,turbine detector
*Considertate after-service
*Competitive price under the same industries
*Test report with 3rd party:

  BaoTi Test Center Physical and Chemical Test Report.
  Physics and Chemistry Inspection Center for Western Metal Materials Co,.Ltd.



Quality Test

The turbine detector probes surface flaws above 3mm and 100% ultrasonic flaw detection checks inner defects

below 3mm,they can guarantee titanium bars quality both inner and outer;infrared detection apparatus measures

the whole bar diameter from bottom to top,in a word,we try our best to ensure the product quality better through

primary test ,middle test, final test.


Product range

titanium bar and plate for medical use

titanium sheet for heat exchangers

titanium and titanium alloy tube for condenser and heat exchangers

molybdenum products

Titanium targets

zirconium products

nickel products


Qualification

ISO9001:2008 quality certification

SGS

Titanium license

Medical titanium  license
