titanium mesh
Current Position : Home > titanium mesh

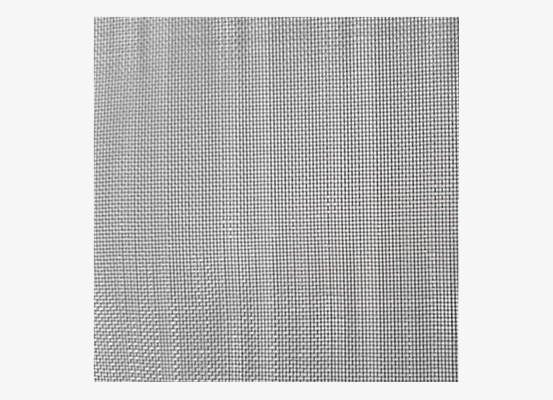

Titanium woven mesh
Time :2015/01/30 17:43:07 Hits :2109


Titanium Woven Wire Mesh, Titanium wire mesh, Titanium fine mesh

Specifications

ASTM B863 Titanium Woven Wire Mesh
1.Material: GR1/GR2
2.Wire diameter: 0.01mm-1.80mm
3.Mesh:2-200mesh
4.Technique:Woven
5.Customized


Material

pure titanium and titanium alloy

Grade

Gr1,Gr2,Gr5,Gr7

Standard

ASTM B863, ASTM B265,ASTM B348,AMS4911/4928,MIL-T-9046

Specification


Thickness 0.1-2.0mm; Length 30m,30.5m; Width 0.9144m-2m

Or as the client's demand

Type

woven

Delivery state

 Y.M

Feature

toughness,light weight.

high property of acid and alkali resistance.

bear high and low temperature etc.

Application

 fencing,metal cage,filtering,breeding,medicine,paper-marking,wire mesh for battery,

 handcraft making,window screen substitube etc

Package

Plastic or waterproof paper inside,wooden case outsie or as required

MOQ

No MOQ, sample is available to testing

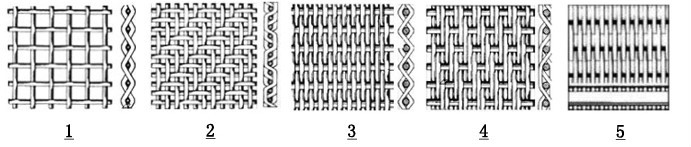

Weaving method

plain weave, plain dutch weave, twill weave, dutch twilled weave



Square Weave Wire Mesh Specification

Normal precision

mesh/inch

wire diameter(mm)

Open Area%

112

150

0.063

39

140

120

0.063

50

160

100

0.071

38

280

60

0.125

50

400

40

0.180

51

850

20

0.450

43



Packaging & Delivery

Packaging Detail:

plastic or waterprood paper inside,wooden case outsie or as required

Delivery Detail:

Within 10-25days after received your advanced payment.
