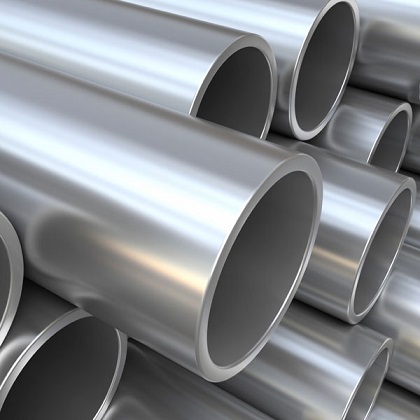

Nickel Tube and Pipe
|
Name
|
Nickel 200/201 seamless steel pipe
|
||
|
Size
|
Wall thickness: 1mm-60mm
|
||
|
Outer diameter: 10mm-1220mm
|
|||
|
Color
|
Metallic Silver Luster
|
||
|
Package
|
Standard export seaworthy package,or as required.
|
||
|
Used
|
Chemical Processing,Petrochemicals Industry, Oil Refineries,
Pharmaceuticals, Fertilizers Plants, Sugar Mills, Textile etc |
||
|
|
Hastelloy: hastelloyB3/B2/X/C/C22/C276/G-30
Inconel: inconel600/625/718/725, Incoloy: incoloy800/800h/825/925, Monel: monel400/k500/404, Nickel: nickel200/201, Nitronic: Nitronic50/60, Alloy: Alloy20/28/330/31/33/75, 4J36/1J50/1J79/4J29/4J42,/3J53 Nimonic: nimonic80/80a/90/75, ETC. |
||
|
Delivery Time
|
15-20 Days
|
||
|
Price Term
|
EXW/FOB/CFR/CIF/FCA
|
||
Chemical composition:
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Ni201 | 99 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99 | 0.2 | 0.3 | 0.3 | 0.15 | / | 0.01 | / |
0.4 |
Features:
|
1 |
Highly resistant to various reducing chemicals |
|
2 |
Excellent resistance to caustic alkalis |
|
3 |
High electrical conductivity |
|
4 |
Excellent corrosion resistance to distilled and natural waters |
|
5 |
Resistance to neutral and alkaline salt solutions |
Characteristic
Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis. Nickel 200 is limited to service at temperatures below 315℃, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curietemperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.
Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760℃ for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315℃. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315℃. Sodium peroxide can be used to change them to sulfates to counteract their effect.
Physical properties:
|
Grade
|
200
|
201
|
|
Density
|
8.89 g/cm3
|
8.89 g/cm3
|
|
Melting Point
|
1435-1446℃
|
1435-1446℃
|
