titanium tube and pipe
Current Position : Home > titanium tube and pipe
Titanium seamless tube
Time :2014-04-24 11:36:26 Hits :13677


Titanium seamless tube,Titanium pipe

Standard: ASTM B337/ASME SB337, ASTM B338/ASME SB338,ASTM B861/ASME SB861


Seamless titanium tube Features

 1) Grade: a) Gr.1(CP titanium, low oxygen)

                b) Gr.2(CP titanium, standard oxygen)

                c) Gr.7( Ti-Pd, standard oxygen)

                d) Gr.9(Ti-3Al-2.5V)

                e) Gr.11( Ti-Pd, low oxygen)

                 f) Gr.12(Ti-Mo-Ni)

                 g) Gr.16(Ti-Pd,standard oxygen)

                 h) Gr.17(Ti-Pd,low oxygen)

2) Basic Sizes:   Out Diameter: 2.0-219mm

                        Wall thickness: 0.3-12mm

                        Length: within 18000mm

3)Products treatment: Annealed or CWSR

4)Package:Poly-wooden cases

5)Products Type:titanium tube,titanium pipe,titanium tubing


Application

Condensers, heat exchangers, medical and sports equipment, aerospace, desalination,
pure chlor-alkali, oil, vacuum salt, etc.

Normal Size

  • OD25*WT1.0*4000mm
  • OD24.2*WT2.4*1000mm
  • OD15.88*WT0.55*5000mm

Quality Guarantee

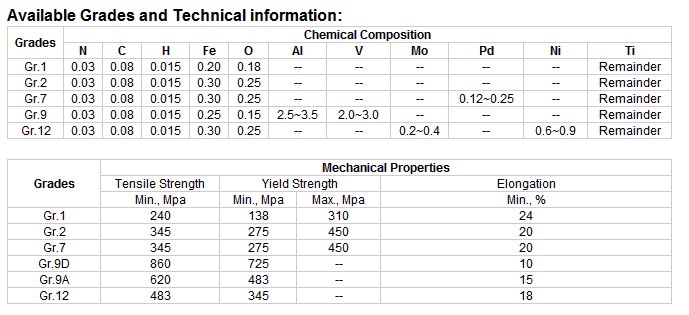

(1) Main quality indicators: chemical composition, mechanical property, tolerance.
(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium
     material in accordance with the International standard.
(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply the products
     with the most excellent quality and the most favorable price and the best service.
(4)The original Mill Test Certificate is available to be attached to the delivery.


Previous:Titanium wire Next:Titanium sheet and plate
