Specifications

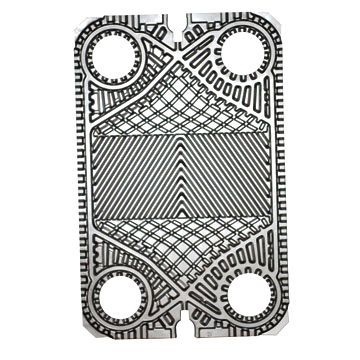

1.Completely replace original plate
2.Highly heating transferring
3.Plate thickness:0.5/0.6/0.7mm

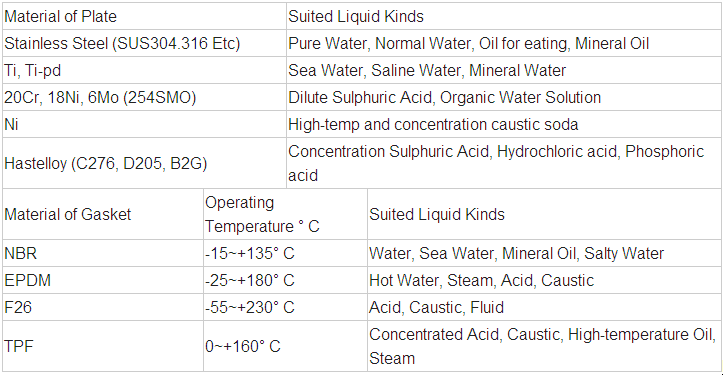

4.Material:Titanium,304,316L

Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place) heating , Reverse osmosis water.

Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers’ cabins and freight spaces

Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating
