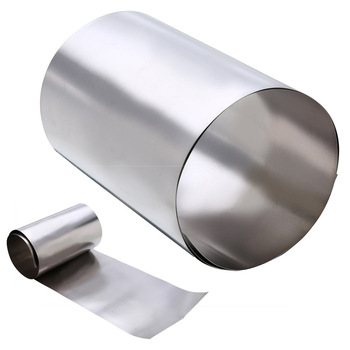

Titanium strip/ band / foil
Time :2020/01/10 12:06:07 Hits :23665


Titanium strip,Titanium band,Titanium foil


1. Standard: ASTM B 265, AMS4911, ASTM F67, ASTM F136

2. Basic Size (mm):

   Titanium Foil: 0.01-0.02(T)*30-100(W)*≥500(L) mm

                         0.03-0.09(T)*50-300(W)*≥500(L) mm

   Titanium Strip/Band: 0.1-0.3(T)*50-300(W)*≥500(L) mm

                                    0.4-0.9(T)*50~500(W)*≥1000(L) mm

                                   1.0-2.0(T)*50-500(W)*≥2000(L) mm

3. Basic Grade: Gr1, Gr2, Gr5, Gr7,Gr12

4. Status: Cold Rolled (Y), Annealed (M)

5. Customized specification is negotiable if needed.


The usage of various Titanium detailed description

(1)Grade 1 can be used in the drawing parts for its good elongation and excellent corrosion-resistance.

(2)Grade 2 is used most widely in the commercially pure titanium

(3)Grade 3 is almost used in pressure,vessel.

(4)Grade 4 can be used in some fittings parts and fastening pieces, but for complex shape need 300 degree

    celsius to form.

(5)Alloy grade 5(Ti-6Al-4V) widely used in the titanium alloys because of its comprehensive mechanical and

    chemical properties.

(6)Alloy grade 7 add little palladium in cp titanium and it has the most excellent corrosion-resistance,of

    course it costs higher.

(7)Alloy grade 9(Ti-3Al-2.5V) is the most widely used in the golf clubs and bicycle girders.

(8)Alloy grade 23, ELI(extra low interstitial),can be used in the medical appliance.



Titanium Strip advantage

Titanium strip is an essential construction element in high tech industries due to its unique properties: specific strength, heat and wear resistance, low density and lightness. Titanium is known as “eternal” metal because of corrosion resistance and biological interness.


Chemical Requirment



N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Gr 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

 Tensile requirements

Grade

Tensile strength(min)

Yeild strength(min)

Elongation

in 4D

Reduction of Area

MPa

kis

MPa

kis

min %

min %

Gr1

240

35

138

20

24

30

Gr2

345

50

275

40

20

30

Gr3

450

65

380

55

18

30

Gr4

550

80

483

70

15

25

Gr5

895

130

828

120

10

25

Gr7

345

50

275

40

20

30

Gr9

620

90

483

70

15

25

Gr11

240

35

138

20

24

30

Gr12

483

70

345

50

18

25



Quality Guarantee

(1) Main quality indicators: chemical composition, mechanical property, tolerance.

(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium

     material in accordance with the International standard.

(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply the products

     with the most excellent quality and the most favorable price and the best service .

(4)The original Mill Test Certificate is available to be attached to the delivery.
