Titanium anode / MMO
Time :2014-04-24 11:42:59 Hits :15571

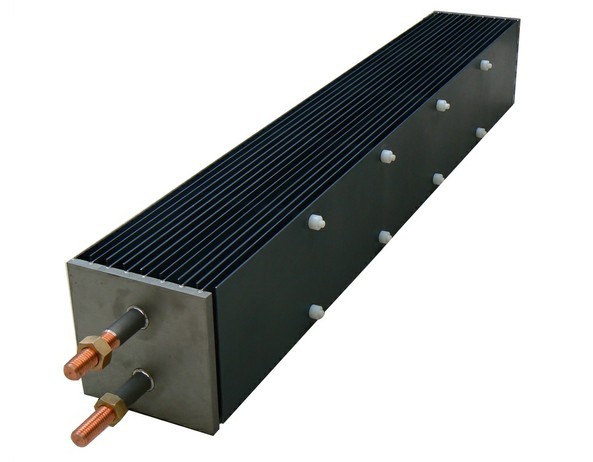

Titanium Anode/ Titanium MMO

Material

Gr1 GR2 titanium based

Coating

Iridium-Tantalum, Ruthenium-Iridium, Ruthenium-Iridium-Titanium,Platinum,Ruthenium oxide, Iridium oxide as coating

Technology

Sand blasting, Acid washing and Brush coating

Dimension

According to customers’ drawing

Shape of base material

Sheet, pipe, rod, wire and mesh

Parameter

1.Current density≤2000A/m2

2.PH 0.1-14

3.Max content of fluoride ion is 200PPM

Electrolyte

Salt water/ Saline solution/Brine/Sea water

Advantages

1.Improved resistance for oxygen/chlorine mixed evolution
2.Range of compositions for various duties available
3.Improved resistance in acidic media
4.Low wear rate

 Features

1. High corrosion resisting

2 .High current efficiency

3. Long working life

4. High current density

5. Light-weight

6. Stable operating voltage

7. The base material can be reused

Application

1. Water (Brine and Sea water) Treatment.

2. Chemical, Paper, Petro-Chemical and Fertilizer Industries.

3. Textile Industries.

4. Electrical & Electronics Engineering Industries.

5. Metal Finishing, Electro Plating, Semi Conductors and PCB Industries.

6. Chemical Industries.

7. Chlore-Alkali & Desalination application.

8. Cathodic Protection (ICCP)

Quality Guarantee
(1) Main quality indicators: chemical composition, mechanical property, tolerance.
(2) With advanced technology & equipment, abundant experiences and skilled workers,we process
      titanium material in accordance with the International standard.
(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply
     the products with the most excellent quality and the most favorable price and the best service.
(4)The original Mill Test Certificate is available to be attached to the delivery.
